BASIC FUNCTIONS

This saw has been designed for cutting solid wood as well as manufactured wood materials such as plywood,wood

panelling, particleboard, mdf and other wood based by-products. This saw is not designed for cutting metals nor

for cutting any materials other than wood or wood based stock.

This saw is designed for use with maximum 10" (250mm) diameter blades having a center hole diameter of 5/8".

The blade can be raised to cut a maximum stock thickness of 3" with the blade set 90 degrees to the table. The

blade can be tilted up to 45 degrees to the left for bevel cuts to a maximum stock thickness of 2 1/4". Using any

standard aftermarket 8" diameter stacked dado blade set (not included), the maximum dado cutting capacity of

this saw is 13/16" (21 mm). Note: for safer dado cutting, an optional dado table insert (part number #50-202) can

e purchased through your General International distributor.

The 50-200R is supplied with both a riving style splitter/blade guard assembly and a European style riving knife that

are both designed to raise or lower and tilt with the blade, and maintain a consistent distance to the blade at all

imes, regardless of the height or angle of the blade. This can help reduce (but not totally eliminate) the risk of a

kickback incident, where the workpiece is thrown back at the operator, by helping to prevent the workpiece from

getting stuck between the blade and the riving style splitter or riving knife (as compared to a traditional stationary

splitter) or from closing up on the back of the blade as it passes through the cut.

ADDITIONAL REQUIREMENTS FOR SET UP

• Extra person for help with lifting

• Phillips Screwdriver

• Straightedge

• Machinist square or triangle square

U V

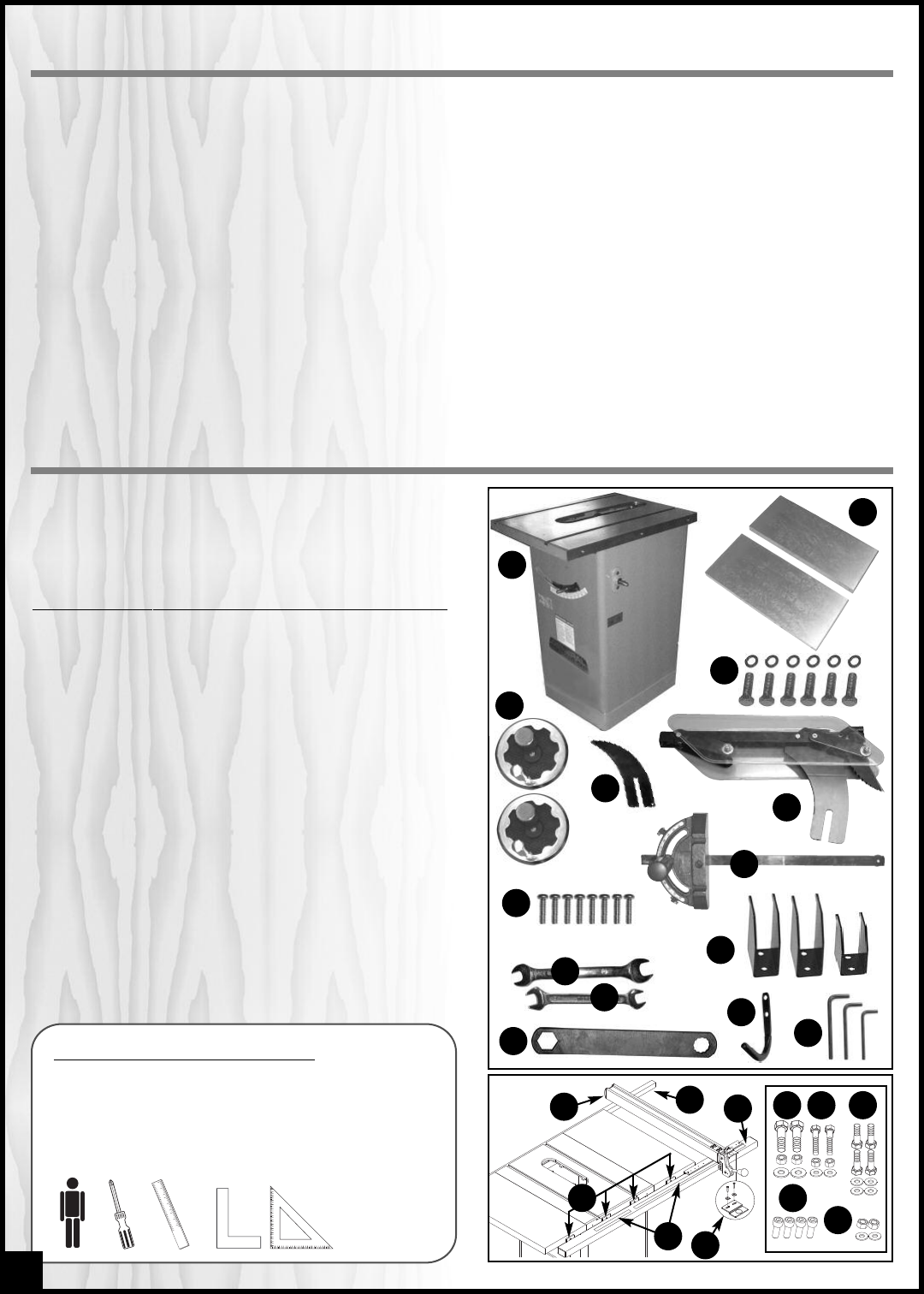

UNPACKING

Carefully unpack and remove the saw and its compo-

nents from the box and check for damaged or missing

items as per the list of contents below.

NOTE: Please report any damaged or missing items to your

General® International distributor immediately.

LIST OF CONTENTS QTY

A -

SAW ..................................................................................................1

B -

TABLE EXTENSION ............................................................................2

C -

17 MM HEX HEAD BOLT W/WASHER ..............................................6

D -

HANDWHEEL W/LOCK KNOB..........................................................2

E -

EUROPEEN STYLE RIVING KNIFE......................................................1

F -

COMBINATION RIVING STYLE SPLITTER & BLADE GUARD..............1

G -

MITER GAUGE ..................................................................................1

H -

PHILLIPS HEAD SCREW.....................................................................8

14-17 MM OPEN END WRENCH......................................................1

J -

10-12 MM OPEN END WRENCH......................................................1

K -

ARBOR WRENCH .............................................................................1

L -

MITER GAUGE/RIP FENCE STORAGE BRACKET ..............................3

M -

ARBOR WRENCH STORAGE BRACKET.............................................1

N -

ALLEN KEY (6-4-3 MM,1 EACH).......................................................3

O -

T-FENCE ............................................................................................1

P -

REAR RAIL.........................................................................................1

Q -

FRONT RAIL ......................................................................................1

R -

“L” BRACKET......................................................................................4

S -

MEASURING TAPE (LEFT & RIGHT)...................................................1

T -

FENCE POINTER/VISOR & HARDWARE ..........................................1

U -

12 MM HEX HEAD BOLT W/HEX NUT & FLAT WASHER ...................2

V -

LONG 10 MM HEX HEAD BOLT W/HEX NUT & FLAT WASHER ........2

W -

SHORT 10 MM HEX HEAD BOLT W/FLAT WASHER ..........................4

X -

6 MM SOCKET CAP SCREW............................................................4

Y -

12 MM HEX NUT & FLAT WASHER....................................................2
